Synchronizing Panel the name itself describes its role once you link with power Source. Means to match, adjust with two or more power magnitude levels. The demand of synchronizing panels comes into action where power continuity is at priority level. In the conclusion, synchronizing panels is the most important part for critical production industries in LT Panels. Accu panels have proper guideline and specification selection for correct synchronization with grid and dg or pv-dg synchronization. By proper Setting of Synchronizing relay and set up of all related data like voltage, ampere, frequency, power factor etc. It can synch DG set load sharing with main power to reduce power consumption from the utility supply.
What is Solar and DG Synchronizing?
In an alternating current electric power system, solar synchronizing panel is the process of matching the speed and frequency of a generator or other source to a running network. An AC generator cannot deliver power to an electrical grid unless it is running at the same frequency as the network.
When driving power to the grid, grid-tied inverters must provide a stable, sinusoidal AC waveform that matches grid voltage and frequency according to utility standards. Poor synchronization can lead to load imbalances, damage to connected equipment, instability in the grid, and even power outages in the grid itself.

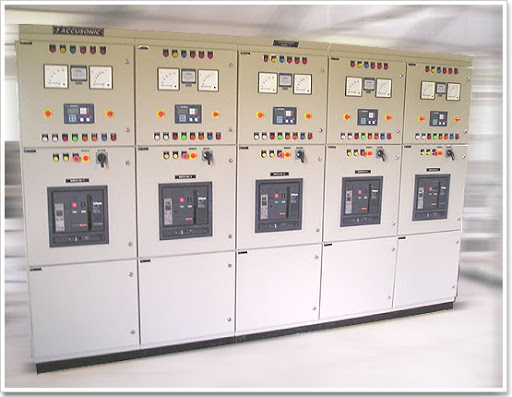

What Is Synchronizing Panel?
Synchronizing panel the name itself describes its role when you link with power Source. Means – To compare, match, adjust with two or more power magnitude levels. Demand of synchronising panels comes into action where power continuity is at priority level. In Conclusion, Synchronising panels is the most important part for critical production industries in LT Panels
Features of Solar Synchronizing Panel
Principle of Operation
All Power sources connected to common bus bars using motorised circuit breakers or Air circuit breakers. Whenever main grid supply fails, Synchronizing relay comes into action and give control signal to alternate sources. So DG connected to common bus bars. After that initial warm-up DG starts and allowed to rotate on full speed.
What is an Automatic Transfer Switch ATS Panel?
An Automatic transfer switch panel, or ATS panel, is a type of Transfer Panel used with a diesel generator to automatically switch between the mains and generator in the event of a power failure. The generator will start / stop automatically depending on the mains supply.
